VLX 80 Fixed / Picture Window

VLX 80 Fixed / Picture Window in San Antonio, TX | Hale Windows San Antonio

The VLX 80 Fixed / Picture Window is the window you choose when the view matters more than anything else. It’s a non-operable, floor-to-ceiling glass wall held in a remarkably thin aluminum frame, which means no cranks, no handles, no visible hardware breaking up the sightline. Homeowners across San Antonio, from Alamo Heights to Stone Oak to Terrell Hills, request this exact series for living rooms that face the Hill Country, for dining rooms that open onto backyard oaks, and for second-story landings where the sunset does the decorating. Hale Windows San Antonio is an authorized ViewLux installation partner, which means you’re getting factory-backed product knowledge and a local San Antonio crew that installs to AAMA standards. Call (361) 348-8929 to schedule a free on-site measurement.

Call (361) 348-8929

Product Overview – VLX 80 Fixed / Picture Window

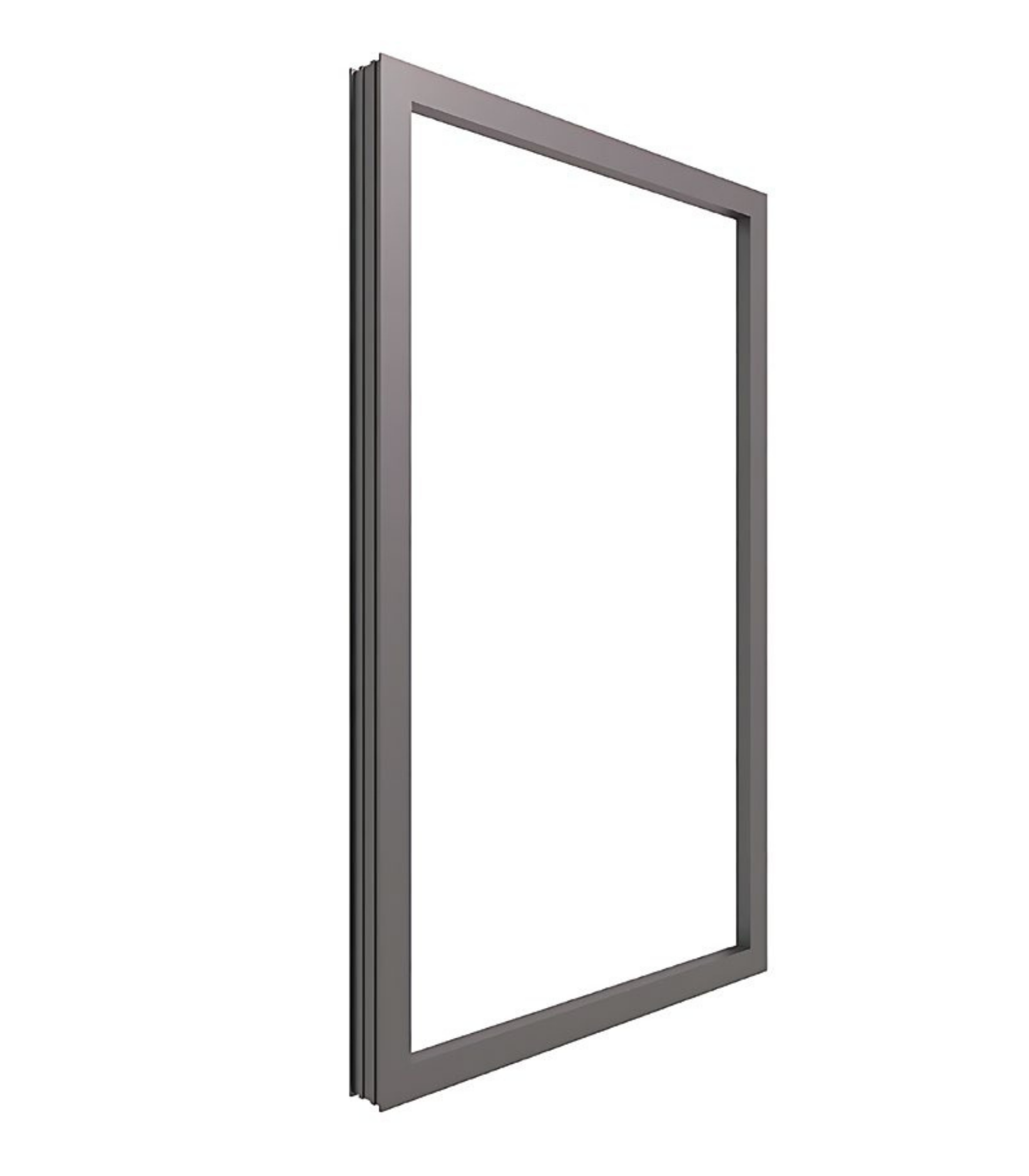

ViewLux designed the VLX 80 series around one idea: the glass should be the show, not the frame. With a profile width of just under 2 inches, this fixed window gives you what glazing professionals call maximum daylight opening. That’s a technical way of saying the frame eats up very little of your view. In a 120-inch-wide opening, you’re looking at nearly 10 feet of uninterrupted glass. The wall thickness of the aluminum extrusion is 0.079 inches, which sounds small but is exactly what allows the frame to stay slim while still holding large panes without sagging over decades of San Antonio heat.

Why do San Antonio buyers pick this over a casement or sliding window? Because a picture window never leaks at the sash. There’s no moving joint to wear out, no weatherstripping to compress, no track to collect grit from Saharan dust storms that blow through Texas. The VLX 80 fixed / picture window is the most watertight window style you can put in a wall, full stop. It’s a favorite for accent walls, transom rows above doorways, bathroom privacy windows with frosted glass, and any architectural spot where you want light but never plan to open the window. The aluminum is thermally broken, powder-coated, and engineered for a climate that sees triple-digit summers and the occasional hail-bearing thunderstorm.

Hale Windows San Antonio has installed this series in new construction and retrofit projects across San Antonio. The biggest difference between this and a builder-grade vinyl picture window is frame rigidity. Aluminum doesn’t twist in the heat. The corners stay square. The glass stays sealed. If you want a floor-to-ceiling look without the floor-to-ceiling maintenance, this is the product.

Technical Specifications

• Frame material: Thermally broken extruded aluminum, 0.079″ wall thickness for slim lines without structural compromise.
• Profile width: 1.97 inches of visible frame around the glass perimeter, among the narrowest in its class.
• Maximum span: Up to 120 inches wide, subject to wind-load calculations for your specific San Antonio elevation and exposure.
• Glass options: Clear, Frosted, Low-E, Tempered, Laminated, Gray Tint, Black Tint. Each pane is dual-sealed with desiccant-filled spacer bars to prevent interior fogging.
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood.
• Operating style: Fixed (non-operable), no sash, no track, no hardware.
• Installation standard: AAMA 2400/2410 compliant, sealed at every perimeter joint with AAMA 812 low-expansion foam.
• Performance ratings: NFRC-rated thermal break performance specific to your glazing choice, impact-resistant laminated glass available for hail and storm zones.

Why These Specs Matter in San Antonio

The 0.079-inch wall thickness is not a marketing number. It’s the specification that lets the VLX 80 hold a 120-inch-wide lite of glass without the frame flexing during wind gusts that routinely hit 40 mph during spring storms in San Antonio. The 1.97-inch profile width means installation trim doesn’t have to be bulky. For homeowners replacing old aluminum single-pane windows from the 1970s who want a cleaner, modern line, this frame gives you a substantial glass-area upgrade without reframing the opening.

Performance Features

Thermal Efficiency

The VLX 80 uses a thermal break between the interior and exterior aluminum faces. Heated or cooled air inside your San Antonio home doesn’t transfer directly through the metal. The result is NFRC-rated performance that holds up in August when the outside wall reads 140 degrees, keeping your indoor glass surface noticeably cooler to the touch.

Acoustic Performance

Fixed windows are inherently quieter than operable ones because there’s no gap where a sash meets a frame. Pair the VLX 80 with laminated glass and you’ll cut sound transmission from Loop 410 traffic, train horns near downtown, or a neighbor’s weekend leaf blower. We’ve measured meaningful decibel reductions in homes along Broadway and Hildebrand.

Airtightness & Weather Seal

Because the unit has no moving parts, the VLX 80 can’t develop draft gaps. The glass unit is factory-sealed, then installed at Hale Windows San Antonio with full-perimeter AAMA 2400/2410 detailing. You’re not relying on a single bead of caulk. The system layers backer rod, sealant, and the AAMA 812 foam to stop airflow before it reaches your drywall.

Waterproofing

Fixed windows fail at the installation joint, not the middle of the glass. That’s why our crews in San Antonio apply AAMA 812 low-expansion foam around every perimeter joint, then flash and seal to shed water down and away from the rough opening. We hit each install with a final water test before we clean up. On a picture window this size, that test is not optional.

Wind Resistance

The VLX 80’s aluminum frame is wind-load rated for local climate requirements. San Antonio sits near the southern edge of Tornado Alley and gets derecho-force straight-line winds often enough that flimsy frames are a real liability. The fixed design with 0.079-inch aluminum extrusions and structural glazing resists deflection better than any vinyl equivalent.

Security & Hardware

Zero visible hardware means nothing for a crowbar to grab from the outside. The glass is set into the frame with structural glazing tape and a glazing bead that can’t be peeled back. If security is a concern for your San Antonio home, laminated glass adds a layer that takes sustained, noisy effort to penetrate. The window won’t open, ever, which is the simplest deterrent there is.

Color & Glass Options

The VLX 80 comes in six finishes, and the right choice changes the entire mood of a wall. Premium Black and Pure White are the two modern standbys in San Antonio; black frames read as a bold architectural line against brick or stucco, while white disappears into trim in coastal-style or traditional homes. Anodized Silver has that raw, machined look that suits mid-century ranch houses in Castle Hills. Bronze and Champagne are the warmer metallics that blend with Tuscan and Spanish Revival exteriors you see throughout the Dominion and Shavano Park. Teak Wood is a powder-coated woodgrain that gives the crispness of aluminum with the warmth of timber, ideal when you want the look of wood windows without the repainting cycle.

On the glass side, Low-E is our default recommendation in San Antonio; it blocks solar heat gain while staying clear, which keeps your cooling bill from climbing every June. Clear gives you the purest view but no thermal coating. Frosted works for bathrooms and side returns where you want light without sightlines. Tempered is safety glass and required by code for any window near a door or low to the floor. Laminated adds impact resistance and sound dampening. Gray Tint and Black Tint cut glare, which matters for west-facing picture windows in San Antonio that get the brutal 6 p.m. sun. We’ll walk through each option at your free measurement.

Installation by Hale Windows San Antonio in San Antonio

We’re going to be blunt: a $2,000 picture window installed wrong is a $2,000 problem you’ll stare at every day. ViewLux’s manufacturer warranty is only as good as the installation underneath it. Poorly set frames void that warranty, and most failures we see in San Antonio homes are install failures, not product failures. There is a reason we run every VLX 80 install through the same sequence.

We start with a pre-install inspection of the rough opening. Older San Antonio homes, especially post-war construction around Jefferson and Woodlawn Lake, often have openings that have shifted a quarter of an inch over 60 years. We don’t shim and hope. We measure corner to corner, check for level and plumb, and call the opening what it is before a window is ordered. On install day, the frame is set level, plumb, and square. That is not optional language. A fixed window that’s out of square by even a few degrees will stress the glass unit and crack the seal eventually. Once set, we apply low-expansion AAMA 812 foam around the entire perimeter, per AAMA 2400/2410 standards. No gaps, no shortcuts. Then the exterior is flashed to shed water, the interior is insulated and trimmed, and we run a water test on the finished opening. We clean up the work area and walk the window with you before we leave.

San Antonio’s climate adds two wrinkles other markets don’t deal with. First, the freeze-thaw cycle in winter, rare as it is, punishes any gap left unsealed. Second, our summer sun hits window perimeters hard and breaks down cheap sealants fast. That’s why we use the AAMA 812 foam and proper flashing tape on every install, not just big ones.

How Much Does a VLX 80 Fixed / Picture Window Cost in San Antonio?

Frequently Asked Questions – VLX 80 Fixed / Picture Window

Get a Quote – VLX 80 Fixed / Picture Window in San Antonio

If you’re replacing a window or planning a project in San Antonio, start with a measurement. It costs nothing, takes about 45 minutes, and puts a real number in your hand instead of a website estimate. Call (361) 348-8929 and we’ll come out, measure the opening, and walk through glass and finish options for the VLX 80 fixed / picture window.

Written by the team at Hale Windows San Antonio, authorized ViewLux installation partner serving San Antonio, TX.
