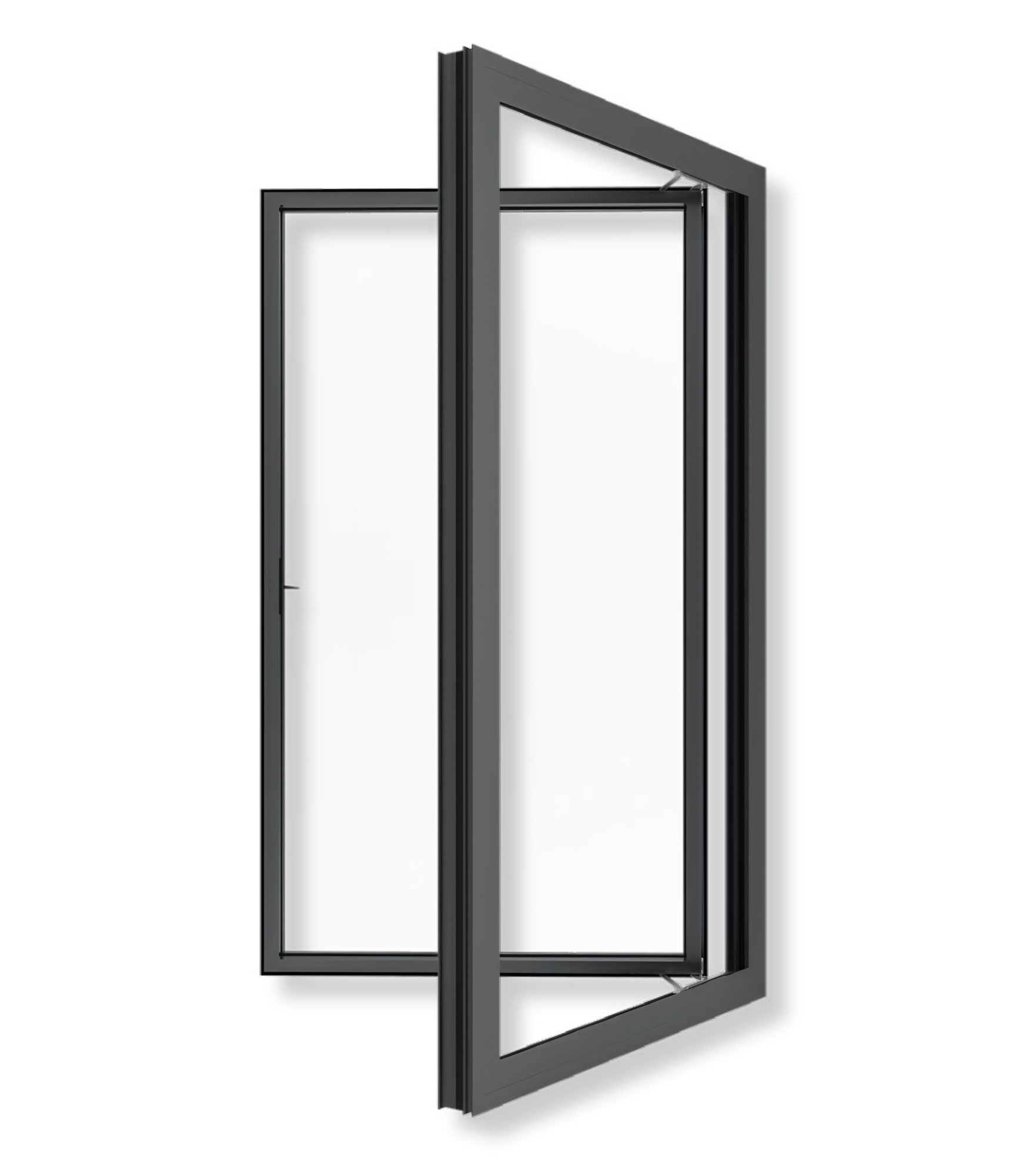

The VLX 80 Casement Window is a side-hinged aluminum window built around two ideas: the thinnest possible frame and the widest possible opening. That combination matters in San Antonio, where summer heat pushes homeowners to catch every breeze and the strong Texas sun punishes bulky, poorly engineered frames. This window opens outward like a door, catching side winds that double-hungs simply can’t. Hale Windows San Antonio is an authorized ViewLux installation partner, which means you get the genuine product, installed to the manufacturer’s spec, with a warranty that actually holds up. Call (361) 348-8929 for a free on-site measurement and a written quote.

Call (361) 348-8929

Product Overview – VLX 80 Casement Window

The VLX 80 sits in a specific niche of the window market. It’s for homeowners who want the crisp, contemporary look of aluminum without the bulky sightlines that older aluminum windows are known for. The frame measures just 1.97 inches across the face, which puts more glass in the opening and less metal in your view. When closed, it reads almost like a fixed pane of glass. When open, the entire sash swings out, delivering full-window ventilation from top to bottom.

That matters more in San Antonio than in most markets. Our hot season runs long, and casement windows are one of the few designs that can genuinely capture a cross breeze. Because the sash seals against the frame with compression weatherstripping, you also get a tighter close than sliding windows can offer, which translates to real savings on cooling costs from May through October.

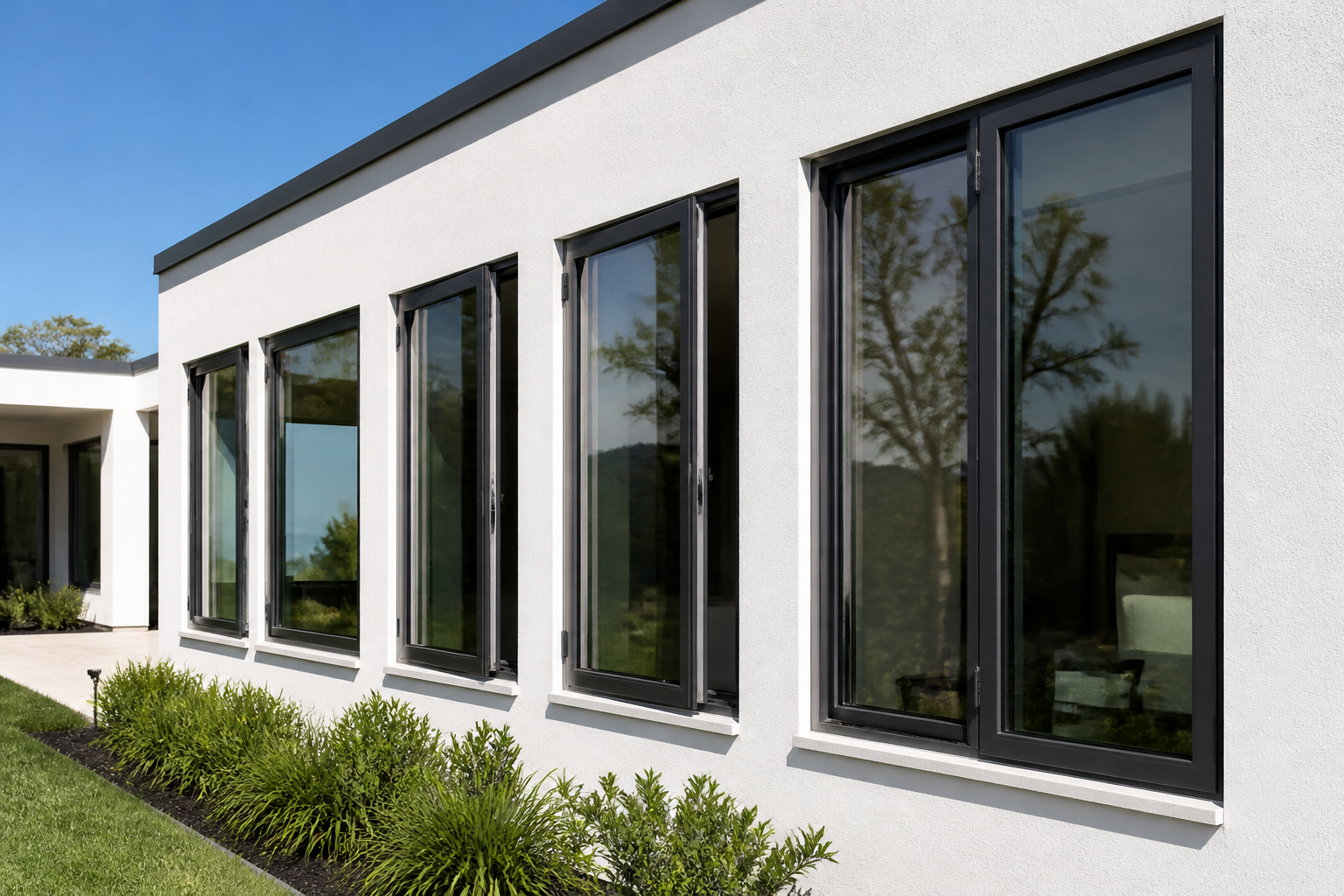

Architecturally, the VLX 80 fits both modern builds in areas like The Pearl and Alamo Heights ranch homes that are getting a facelift. The aluminum frame is thin enough to disappear into a contemporary design but strong enough to carry large glass panes without sagging. The wall thickness is 0.079 inches, which gives the frame its rigidity without unnecessary weight. Buyers choose this series when they want maximum glass area, a clean profile, and a window that will open and close smoothly for decades.

We sell and install the VLX 80 through our partnership with ViewLux. The manufacturer builds the product; we handle everything about getting it measured correctly, ordered, installed level, and sealed against San Antonio’s rain and dust. That division of labor keeps things simple for you: one local company, one point of contact, one number to call if anything ever goes wrong.

Technical Specifications

Here is the spec sheet, reworded so you can actually compare it against other windows you’re considering:

• Wall thickness: 0.079 inch. This is the thickness of the aluminum extrusion itself, and it’s a meaningful number. Thicker walls mean the frame resists twisting and bowing over time, especially on larger sashes.
• Profile width: 1.97 inches. This is the face width of the frame. Anything under two inches is considered a narrow-sightline window, and the VLX 80 clears that mark.
• Glass options: Clear, Frosted, Low-E, Tempered, Laminated. Tempering is required by code in many San Antonio locations for low windows and door-height sashes, and the laminated option adds impact resistance.
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood. These are powder-coat finishes on the aluminum, applied at the factory, not painted on site.
• Screens: Fixed Screen or Retractable Screen. The retractable option rolls out of sight when the window is closed, preserving the clean sightline.
• Sill options: Standard Sill or Low-Profile Sill. The low-profile sill reduces the step-over height and gives a more minimal floor-line transition on patio-facing installations.

Performance Features

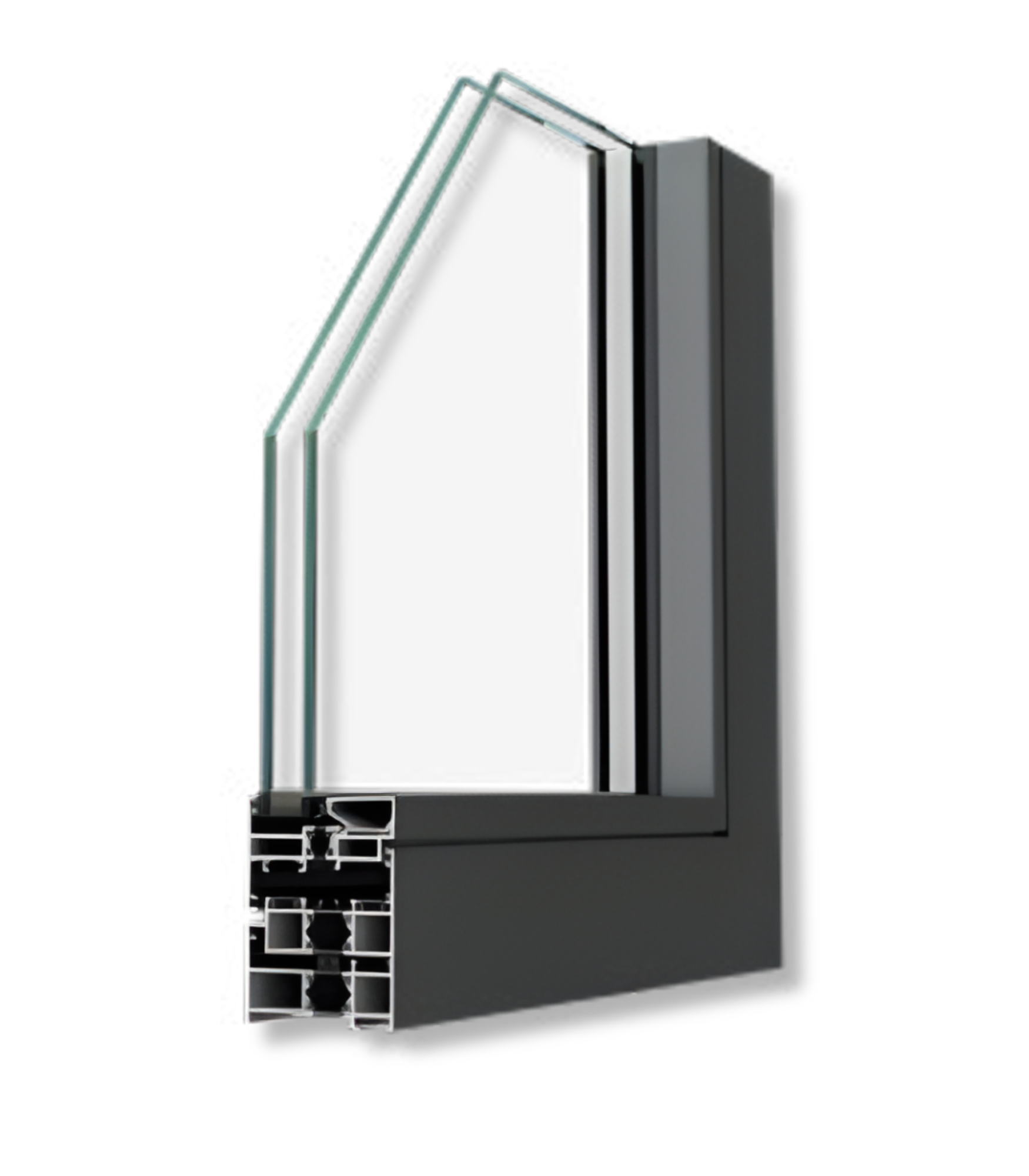

Thermal Efficiency. The VLX 80 uses thermal break technology, which means the inside and outside aluminum halves are separated by a non-conductive barrier. That interruption stops heat from transferring directly through the frame, and the result is an NFRC-rated window that performs well in San Antonio’s cooling-dominated climate even before you factor in Low-E glass selection.

Acoustic Performance. Aluminum frames are dense, and the VLX 80 compresses its weatherstripping tightly when closed, creating a quieter interior. Homes near Loop 410, I-10, or the airport corridors in San Antonio notice the difference immediately. Adding laminated glass pushes sound reduction further, which is a common request for bedrooms facing busy streets.

Airtightness & Weather Seal. The casement design means the sash closes into the frame under mechanical pressure from the crank, not just gravity. That pressure seal delivers better airtightness ratings than standard sliding windows, an important factor for anyone tracking summer energy usage in San Antonio.

Waterproofing. The frame is engineered with internal drainage channels that route water back out to the exterior, so sudden squalls don’t stand a chance. Combined with our perimeter installation seal, the system keeps wall cavities dry even in the heavy spring and fall storms that roll through south Texas.

Wind Resistance. The VLX 80 is wind-load rated for local climate requirements, including the higher gust zones common to open, flat terrain on San Antonio’s north and west sides. Laminated, impact-resistant glass is available for homes that want additional protection against windborne debris.

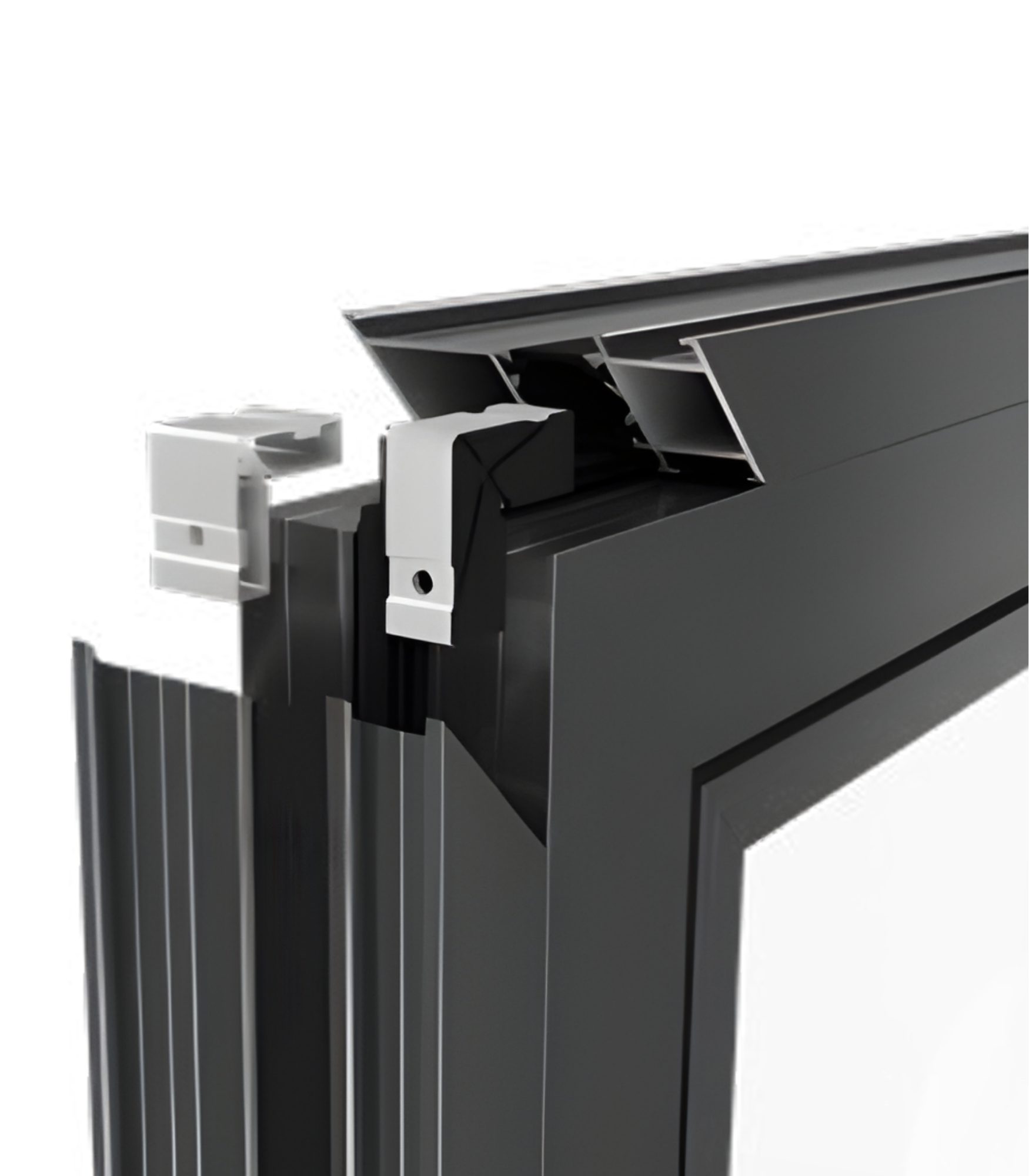

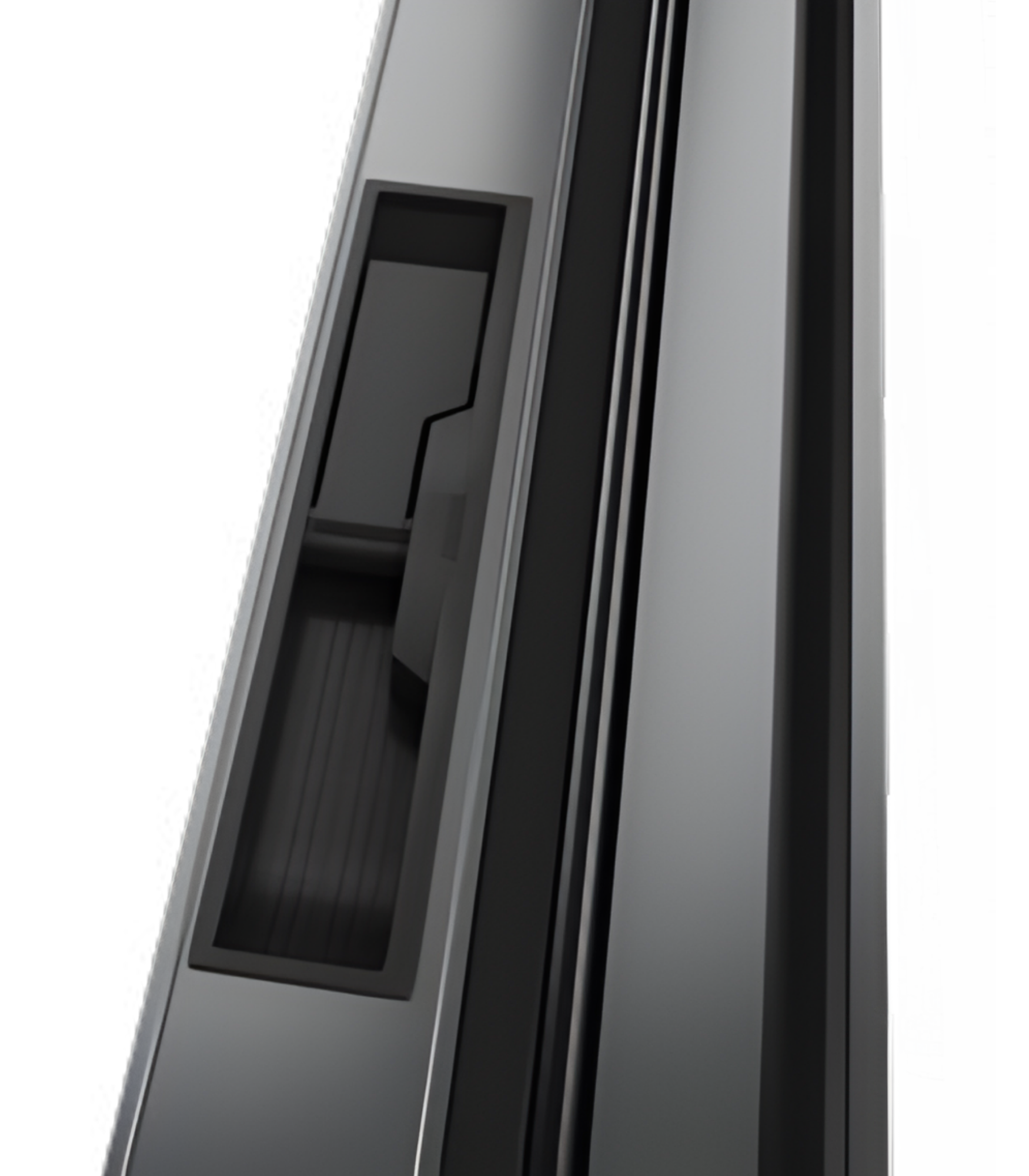

Security & Hardware. Multi-point locking hardware engages at several points along the sash, not just at the handle. That’s a real step up from the single latch on a double-hung, and it’s part of why casement windows are often specified for ground-floor rooms and street-facing elevations.

Color & Glass Options

Six factory finishes cover most of what San Antonio homeowners ask for. Pure White works well on traditional Hill Country builds and Mediterranean styles. Premium Black is the go-to for modern farmhouses and contemporary remodels in areas like Olmos Park and King William. Anodized Silver is the most understated option, with a natural metal look that suits commercial-style buildouts and minimalist homes. Bronze delivers a warm, mid-tone frame that pairs well with brick and limestone. Champagne is warmer still, a soft metallic that reads almost taupe in sunlight. Teak Wood gives the appearance of wood grain on aluminum, useful for HOAs or historic districts that restrict exterior materials.

On the glass side, Clear is the price baseline. Frosted makes sense for bathrooms, laundry rooms, and any first-floor window facing a neighbor. Low-E is almost always worth the upgrade in San Antonio, since it cuts solar heat gain during our long cooling season. Tempered glass meets code where safety glazing is required. Laminated glass adds impact resistance and sound deadening. We can mix and match, so a full-house order can specify frosted tempered glass in the bathrooms and impact-rated Low-E in the living room.

Installation by Hale Windows San Antonio in San Antonio

Here’s what an installation by Hale Windows San Antonio actually looks like. We start with a pre-install inspection of every opening. We measure the rough opening from three points in both directions, check the framing for rot or movement, and confirm the surface we’ll be mounting to is sound. No window performs if the opening is compromised, and we’d rather find that before the old window comes out.

Every unit is set level, plumb, and square before any fasteners go in. We shim the frame, check it with a level in both planes, and confirm the diagonal measurements. If the opening is off, we correct the mounting, not the window, because a twisted frame will bind the crank hardware and void the warranty. The perimeter gets sealed with AAMA 812 low-expansion foam on every joint, not just the visible gaps. That foam stops air infiltration and moisture migration at the wall cavity, and it’s the standard ViewLux expects.

Our work complies with AAMA 2400/2410 installation standards, which cover the full installation sequence: preparation, setting, anchoring, flashing, sealing, and finishing. After the window is mounted, we run a water test on the exterior to verify drainage, then do a full interior cleanup, including old window removal and haul-off.

One thing we’re straightforward about: a poor installation voids the manufacturer’s warranty, and San Antonio’s climate will expose that mistake within a season or two. Expansive clay soils shift, windows bake in the sun, and driving rain finds the gaps. Installing by the book is the only way the product delivers what it’s rated for, and it’s the only way we’ll stand behind it.

Frequently Asked Questions – VLX 80 Casement Window

Get a Quote – VLX 80 Casement Window in San Antonio

If you’re considering the VLX 80 Casement Window for your San Antonio home, start with a free on-site measurement. We’ll bring finish samples, glass samples, and a written line-item quote, so you know the exact cost before you commit. Call (361) 348-8929 or stop by and we’ll get your project scheduled.

Written by the team at Hale Windows San Antonio, authorized ViewLux installation partner serving San Antonio and surrounding areas.
